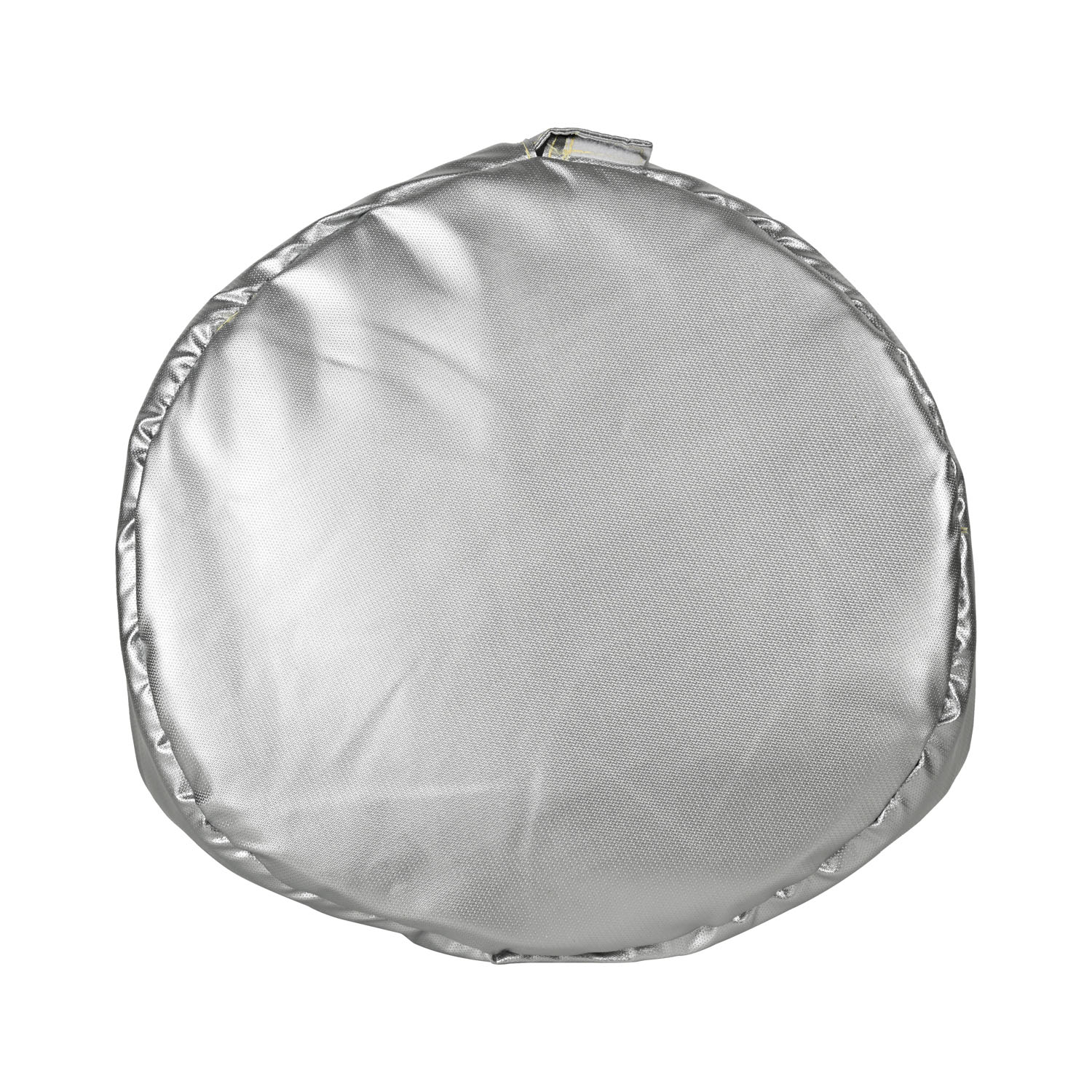

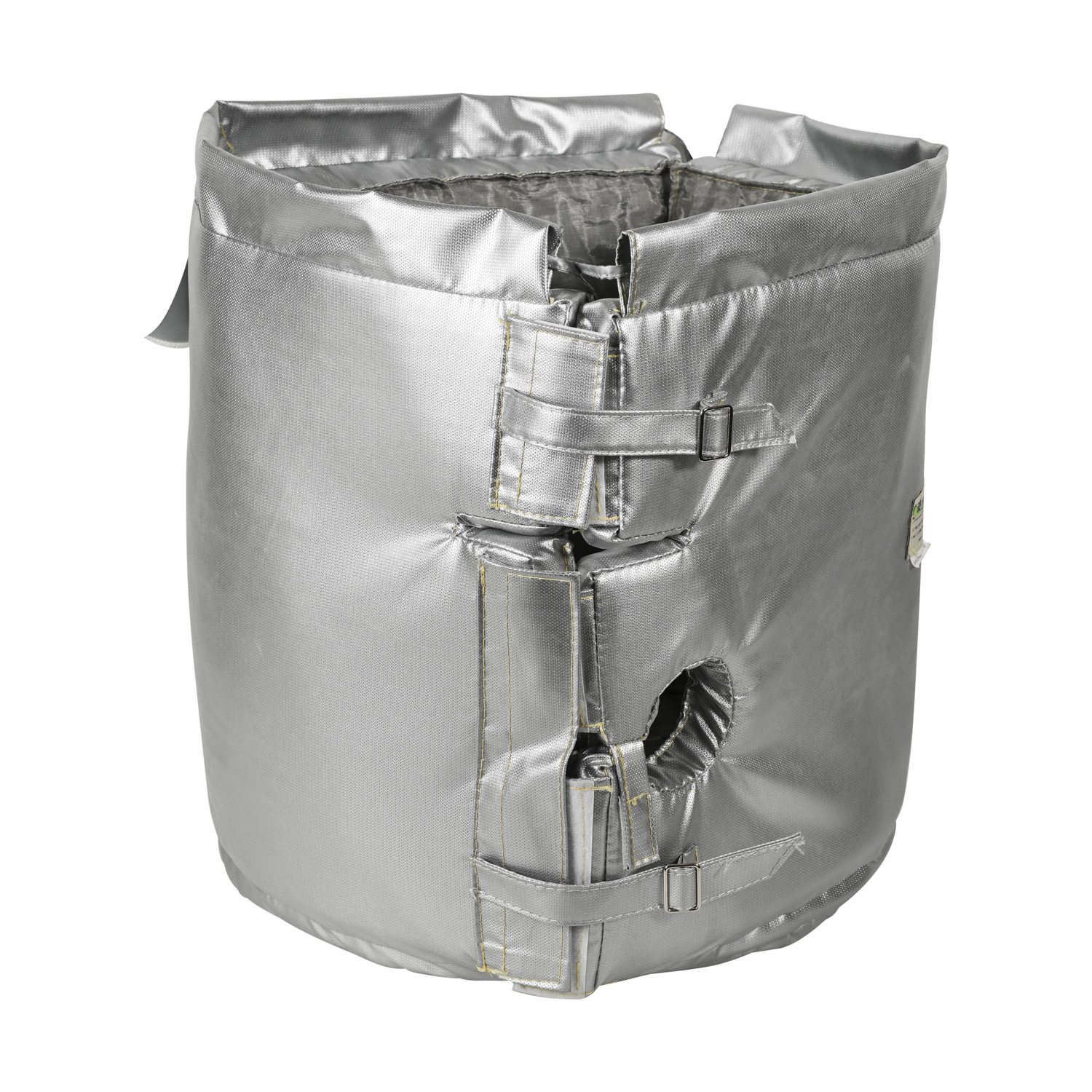

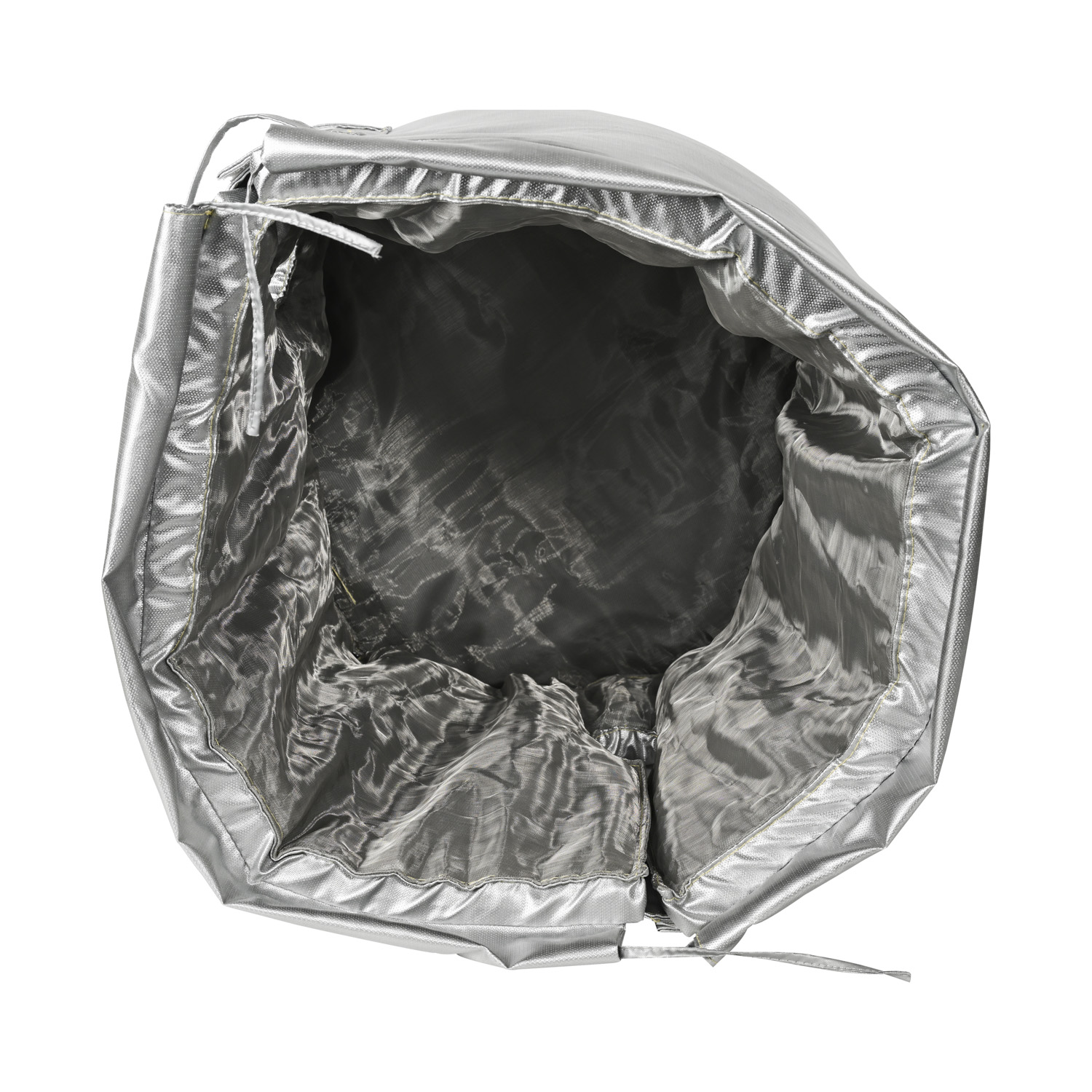

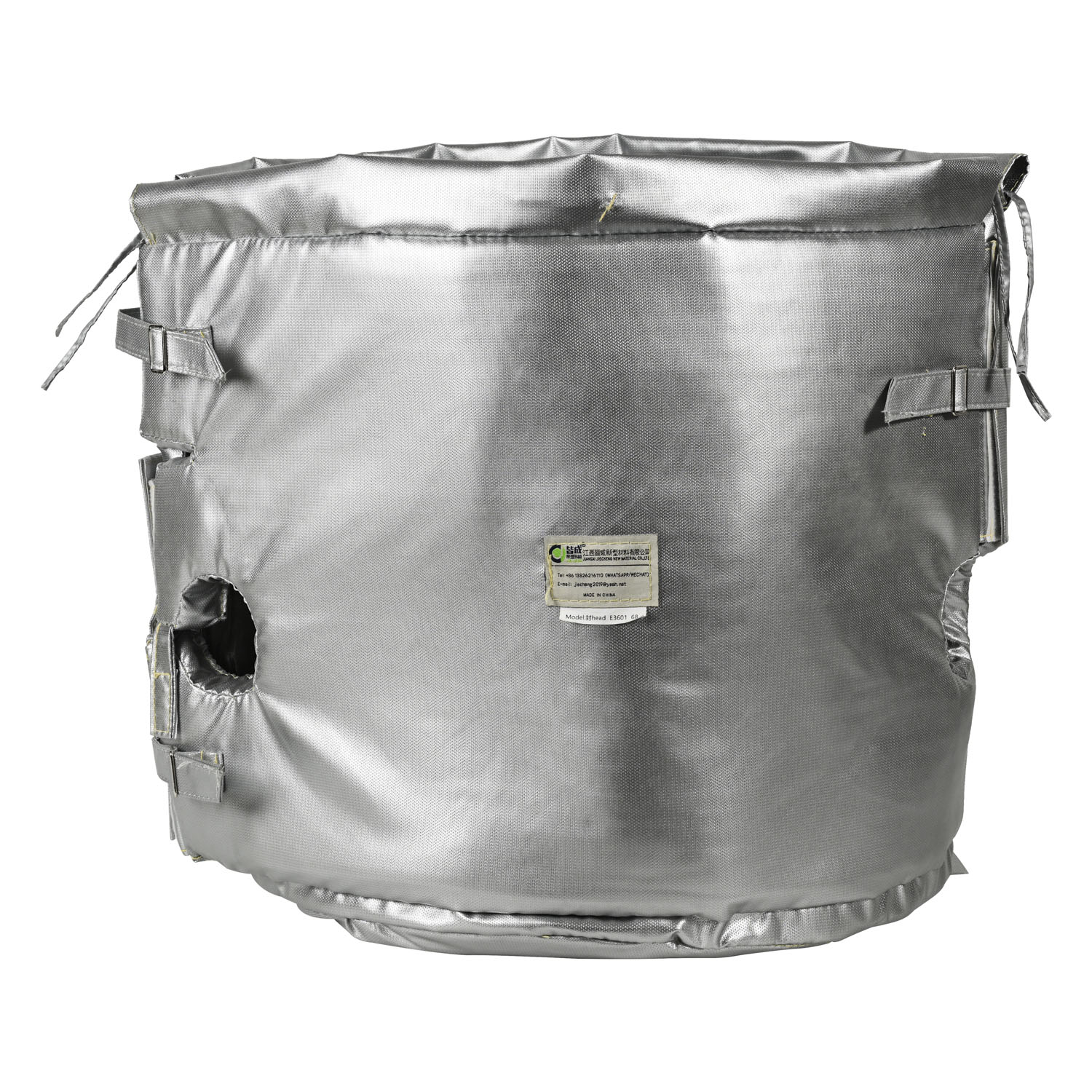

High Temperature Valve Insulation Jacket - Reusable Thermal Cover from China Suppliers and Factory, -70℃ to 1000℃
Wide Range of Applications
Removable insulation jacket can be used in different fields; such as breweries, beverage factories, food factories, chemical factories, pharmaceutical factories, ships, industrial robots and so on.
Removable thermal insulation jacket (industrial thermal insulation jacket) which is more widely used is the reaction kettle thermal insulation jacket, electric accompanied by heat (electric heating) thermal insulation jacket, shipyard (ship valve) thermal insulation jacket, injection molding machine (gun barrel) thermal insulation jacket/cover, manhole, heterogeneous thermal insulation jacket and so on.
Thermal Insulation Performance Comparison
| Project | Aerogel detachable |
|---|---|
| Texture |
Outer protective layer: silicone composite fireproof cloth (fireproof, waterproof, oil proof, acid and alkali resistant, corrosion resistant) Intermediate insulation layer: nano aerogel + glass fiber felt (nano aerogel is the best insulation effect at present, considering the cost, the combination of the two has achieved the best insulation effect.) Non-toxic and asbestos-free. Lining: silicone composite fireproof cloth/high silica cloth (maximum temperature resistance of 600 degrees, strong oxidation resistance) |
| Thickness | According to the equipment temperature of 25-30mm, there is room for pipeline layout or later transformation |
| Heat conductivity coefficient | 0.017~0.023w/m·k (for heat insulation, the smaller the thermal conductivity, the better) |
| Construction |
1. Disassembly, installation is very convenient, can be reused, do not need to ask professionals; 2. 100 square meters of insulation area, calculated by 6 people: demolition 2 hours, installation 1 working day; The maintenance equipment can be disassembled in sections at any time. |
| Environmental suitability | Strong adaptability: acid and alkali resistance, the product appearance is beautiful and clean, the surface can be scrubbed and so on. |
| Environmental protection | No pollution, free of asbestos and any other harmful substances. |
| Range of application | Strong flexibility, non-standard equipment can be customized, wide range of application. |
| Energy conservation | More than 30% energy saving than traditional thermal insulation materials |
| Payback time | Long life: indoor 20 years, outdoor 15 years, within a year can recover the cost of buying insulation. One investment, many years of returns. |
| Cost of investment | The one-time investment cost is about 20-30% more than traditional insulation |
Frequently Asked Questions (FAQ)
Q
What industries and equipment are suitable for removable insulation jackets?
They are widely used across breweries, beverage factories, food factories, chemical factories, pharmaceutical factories, ships, and industrial robots. Specific applications include reaction kettle insulation jackets, electric heating/tracing covers, ship valves, injection molding machine gun barrels, manholes, and custom heterogeneous equipment.
Q
What materials are used in the Aerogel detachable insulation structure?
The structure consists of three layers: an outer protective layer made of silicone composite fireproof cloth (waterproof, oil proof, acid/alkali/corrosion resistant); an intermediate layer of nano aerogel combined with glass fiber felt for optimal thermal performance (non-toxic, asbestos-free); and an inner lining of silicone composite fireproof cloth or high silica cloth resisting temperatures up to 600°C.
Q
How energy-efficient is the Aerogel detachable insulation jacket?
It delivers more than 30% energy savings compared to traditional thermal insulation materials, supported by an ultra-low heat conductivity coefficient of 0.017~0.023 W/(m·K).
Q
How complex is the installation and disassembly process?
Disassembly and installation are straightforward, reusable, and require no professional labor. For example, a 100 square meter insulation project handled by 6 people takes approximately 2 hours for removal and 1 working day for installation, enabling sectional disassembly at any time for equipment maintenance.
Q
What is the lifespan and investment payback time?
The insulation jacket has a service life of up to 20 years indoors and 15 years outdoors. Although the initial investment is about 20-30% higher than traditional insulation, the energy savings typically allow you to recover the full cost within one year.
Q
Are these removable jackets environmentally friendly and easy to maintain?
Yes, they are completely pollution-free, asbestos-free, and free of harmful substances. The product provides a clean, aesthetic appearance that is acid/alkali resistant and easily scrubbable on the surface.
